| Item | Model | PART NO. | Load Range(KGF) | Amount of deformation(mm) |

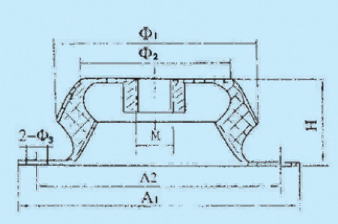

Φ2(mm) | Φ1(mm) | A1(mm) | M(mm) | Φ3(mm) | H(mm) | Weight(Kg) |
| 1 | ZA-39-70(M16) | 3030500013 | 500-600 | 1.5-4.5 | 82 | 104 | 135 | 16 | 13.5 | 39 | 0.7 |
| 2 | ZA-49-50(M16) | 3030500015 | 700-850 | 2.0-5.5 | 115 | 144 | 182 | 16 | 14.5 | 49 | 1.5 |
| 3 | ZA-39-50(M12) | 3030500011 | 300-400 | 1.5-4.5 | 82 | 104 | 135 | 16 | 13.5 | 39 | 0.7 |
| 4 | ZA-39-40(M12) | 3030500023 | 200-300 | 1.5-3.8 | 82 | 104 | 135 | 16 | 13.5 | 39 | 0.6 |
| 5 | ZA-49-70(M16) | 3030500017 | 1000-1100 | 2.5-5.5 | 115 | 144 | 182 | 16 | 14.5 | 49 | 1.5 |
| 6 | ZA-35-50(M12) | 3030500029 | 120-150 | 1.5-3.6 | 60 | 73 | 100 | 12 | 11 | 35 | 0.7 |
| Item | Model | PART NO. | Load Range(KGF) | Amount of deformation(mm) |
D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | H(mm) | Weight(Kg) |
| 7 | KT-35Y-65A(M12) | 3030500007 | 180-250 | 2.2-4.8 | 60 | 61.5 | 11.5 | 128 | 100 | 35 | 0.7 |
| 8 | KT-39Y-45A(M12) | 3030500008 | 150-250 | 1.2-3.8 | 80 | 85 | 14 | 172 | 135 | 39 | 0.8 |
| 9 | KT-35Y-45A(M12) | 3030500006 | 110-1600 | 1.4-4.0 | 60 | 61.5 | 11.5 | 128 | 100 | 35 | 0.7 |
| 10 | KT-35Y-35A(M12) | 3030500005 | 70-120 | 1.2-3.6 | 60 | 61.5 | 11.5 | 128 | 100 | 35 | 0.7 |
| 11 | KT-30Y-45A(M12) | 3030500041 | 60-70 | 1.2-2.9 | 47 | 50 | 10*12 | 102 | 76-80 | 30 | 0.5 |
| 12 | KT-39Y-55A(M16) | 3030500009 | 200-300 | 1.1-4.0 | 80 | 85 | 14 | 172 | 135 | 39 | 0.8 |
