We live in a digital age where data centers that house critical applications and data have become essential infrastructure.Even a brief power outage can result in significant data loss and financial damage. Therefore, data centers require continuous, uninterrupted power supply to protect critical information.
Emergency generators can quickly provide power during outages to prevent server crashes. However, in addition to requiring highly reliable generator sets, it is also crucial that generator set providers possess sufficient expertise to configure solutions tailored to the specific needs of data centers.
The technology pioneered by AGG Power has been the standard for quality and reliability worldwide. With AGG's diesel generators standing the test of time, the ability to achieve 100% load acceptance, and best-in-class control, data center customers can be confident that they are purchasing a power generation system with leading reliability and dependability.
AGG ENSURES THE LEAD TIME OF YOUR DATA CENTER SOLUTIONS, PROVIDING RELIABLE POWER AT COMPETITIVE PRICES
Strengths:
Power Solutions:
Small-Scale Data Center Solutions
Compact design for shorter lead time
Up to 5MW of Installed Capacity for Small-Scale Data Center
Up to 25MW of Installed Capacity for Medium-Scale Data Center
Medium-Scale Data Center Solutions
Using more flexible modular design for the generator set to reduce the site construction and installation
Large-Scale Data Center Solutions
Supports rack installation and infrastructure design
Up to 500MW of Installed Capacity for Large-Scale Data Center
Small-scale data center solutions
Optimized compact design
5MW small-scale data center
Compact design for shorter lead time

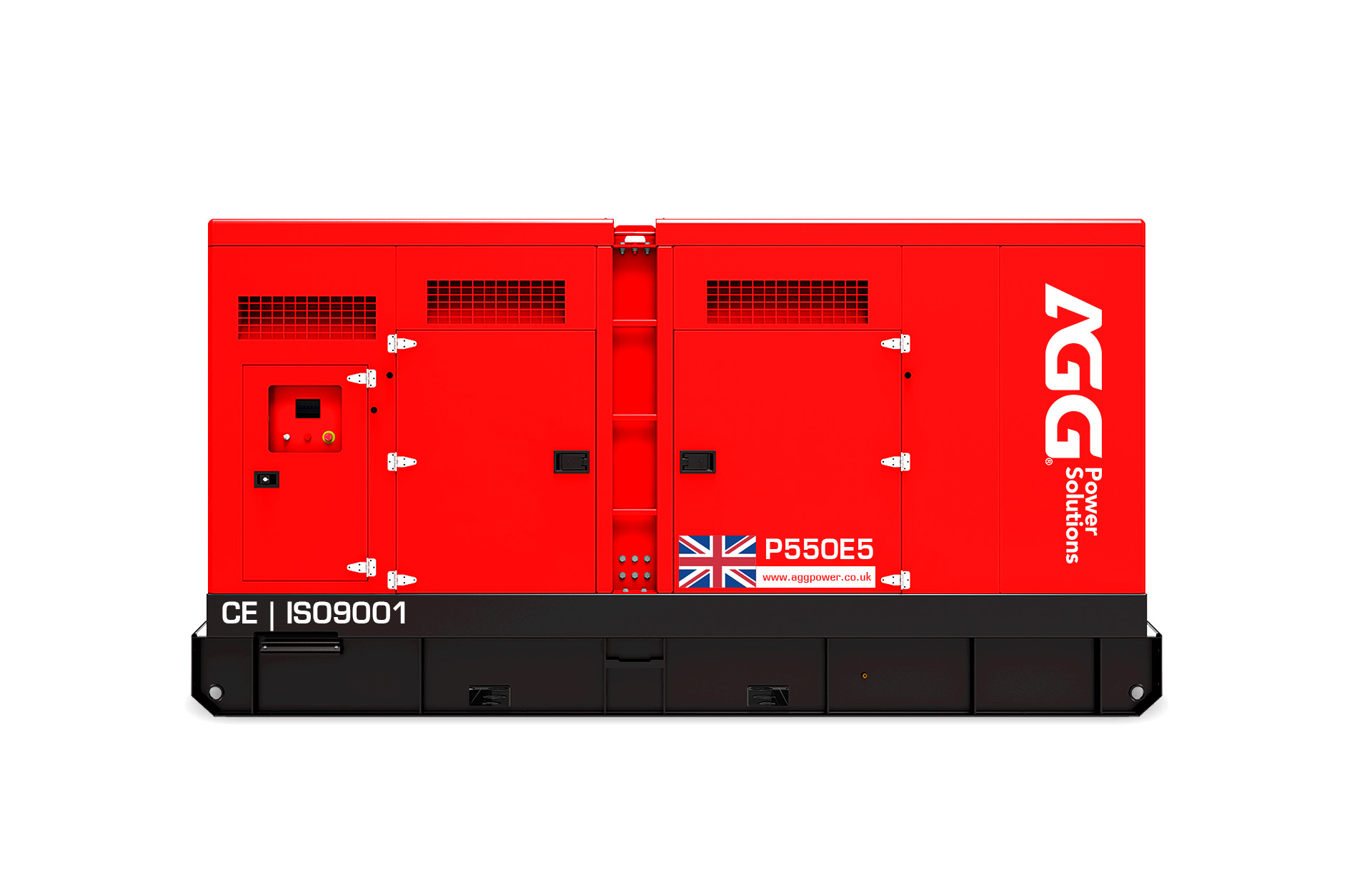

Enclosure: Soundproof type
Power Range: 50Hz:825-1250kVA 60Hz:850-1375kVA
Sound Level*: 82dB(A)@7m (with load,50 Hz),
Sound Level*: 85 B(A)@7m (with load, 60 Hz)
Dimensions: L5812 x W2220 x H2550mm
Fuel System: Chassis fuel tank, support customized large capacity 2000L chassis fuel tank

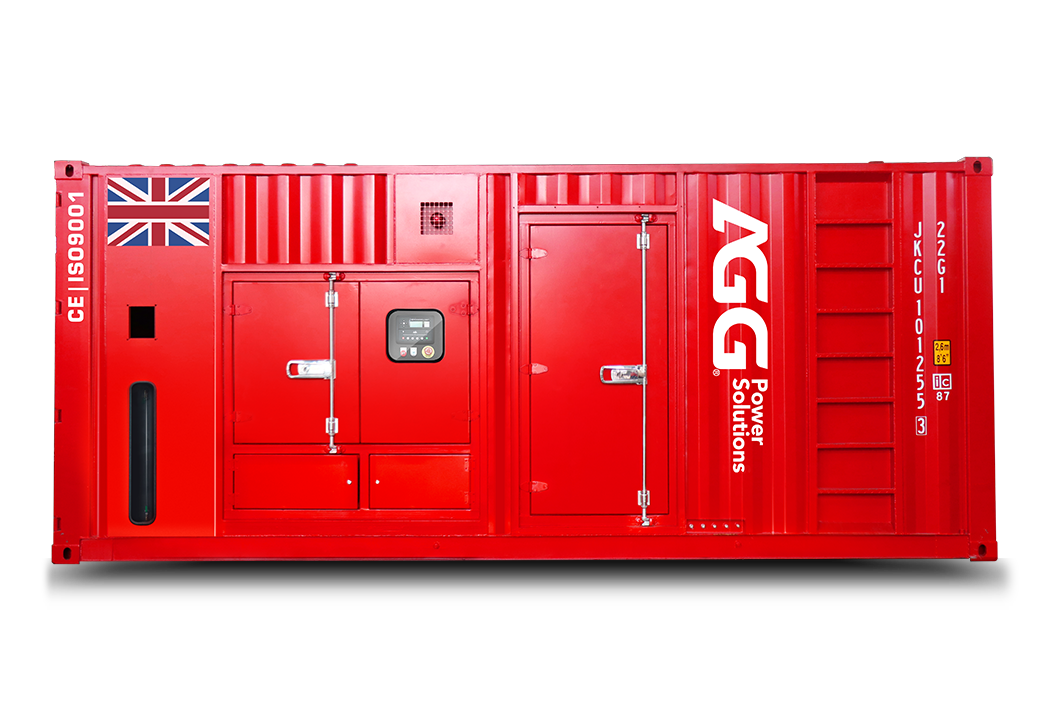

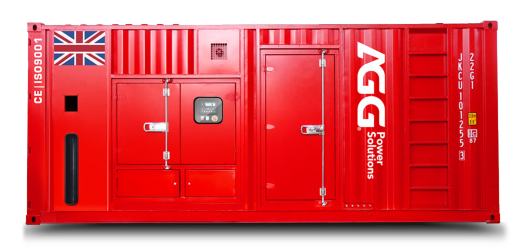

Enclosure: 20ft Containerized type
Power Range: 50Hz:825-1250kVA 60Hz:850-1375kVA
Sound Level*: 80dB(A)@7m (with load,50 Hz),
Sound Level*: 82 dB(A)@7m (with load, 60 Hz)
Dimensions: L6058 x W2438 x H2591mm
Fuel System: 1500L Separate fuel tank

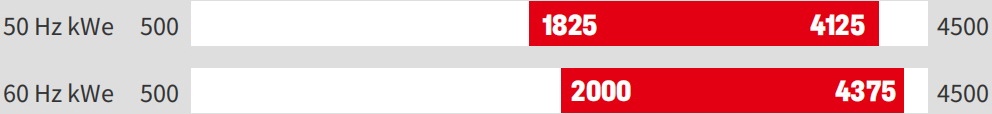

Medium-scale data center solutions
Flexible modular design
Suitable for data centers up to 25MW
Stackable, quick and economic installation

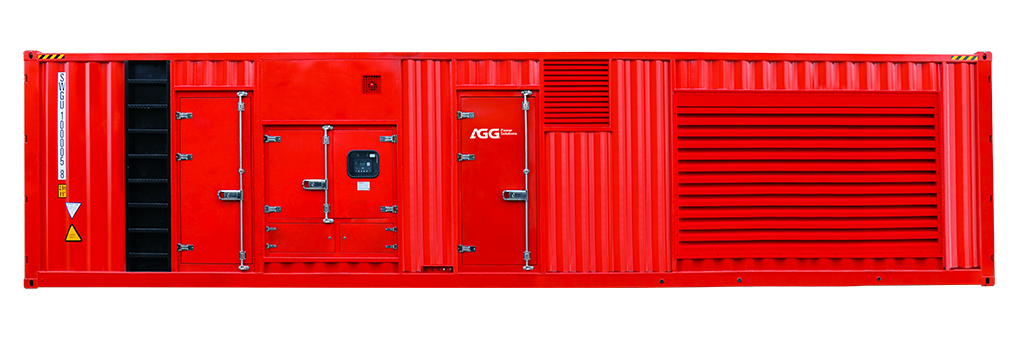

Enclosure: Standard 40HQ type
Power Range: 50Hz:1825-4125kVA 60Hz:2000-4375kVA
Sound Level*: 84dB(A)@7m (with load,50Hz),
Sound Level*: 87 dB(A)@7m (with load, 60 Hz)
Dimensions: L12192 x W2438 x H2896mm
Fuel System: 2000L Separate fuel tank

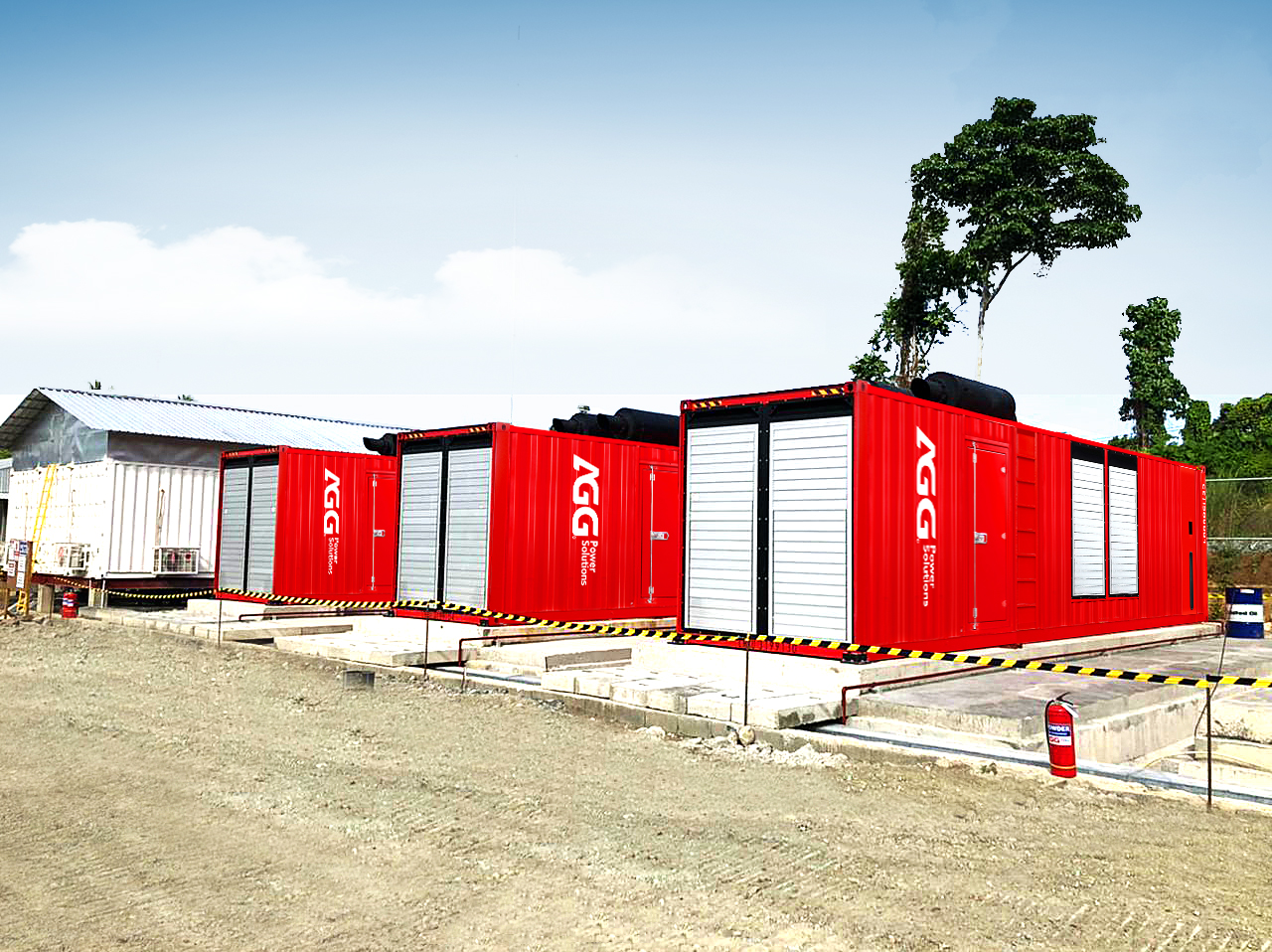

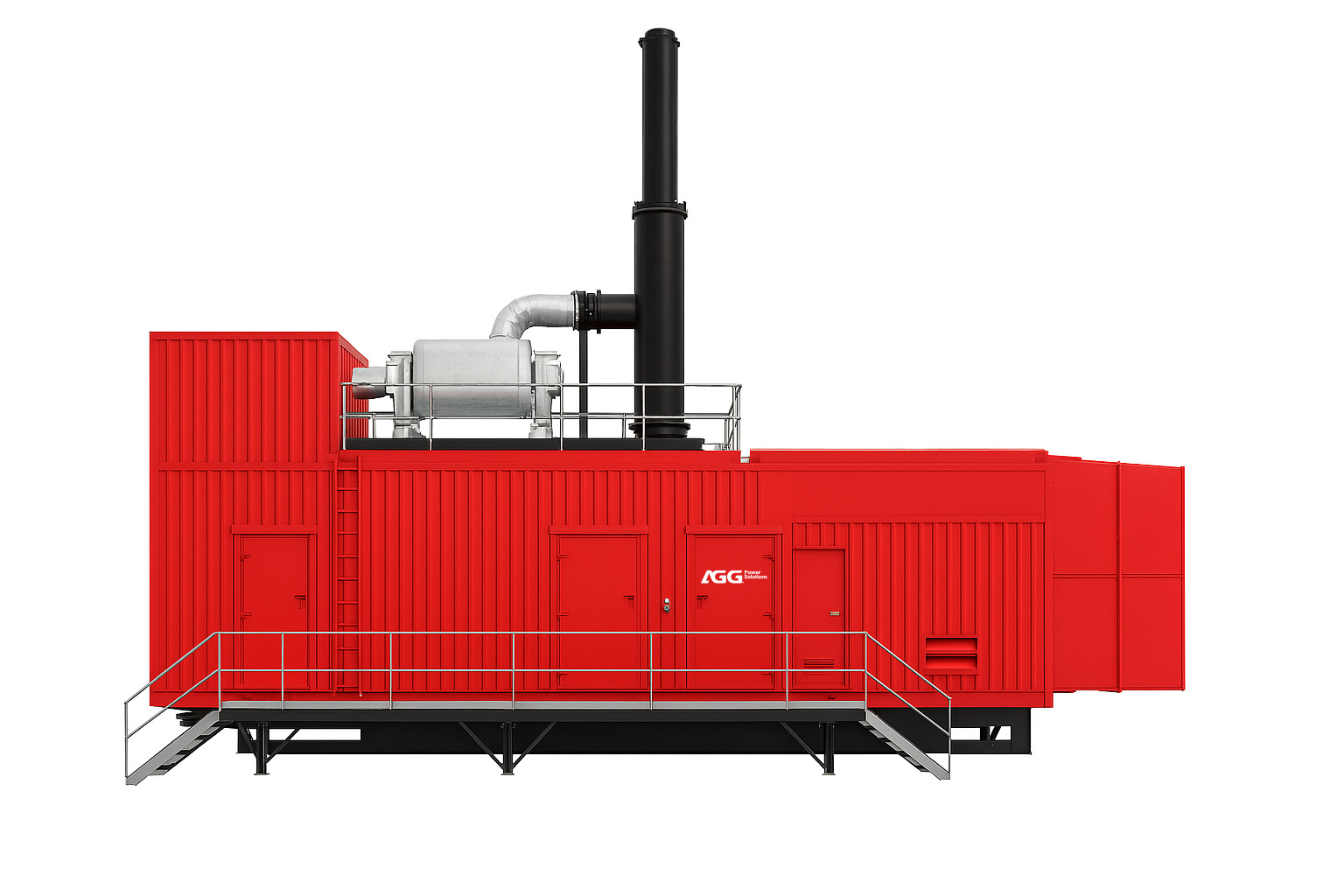

Enclosure: Customized 40HQ or 45HQ containerized type
Power range: 50Hz:1825-4125kVA 60Hz:2000-4375kVA
Sound Level*: 85dB(A)@7m (with load,50Hz),
Sound Level*: 88 dB(A)@7m (with load, 60 Hz)
Dimensions: Customized 40HQ or 45HQ (Sizes can be designed for specific projects)
Fuel System: Can be designed for specific projects, with optional large-capacity fuel storage tank
Large-scale data center solutions
Supporting infrastructure design
500MW large-scale data center
Best power configuration on the market

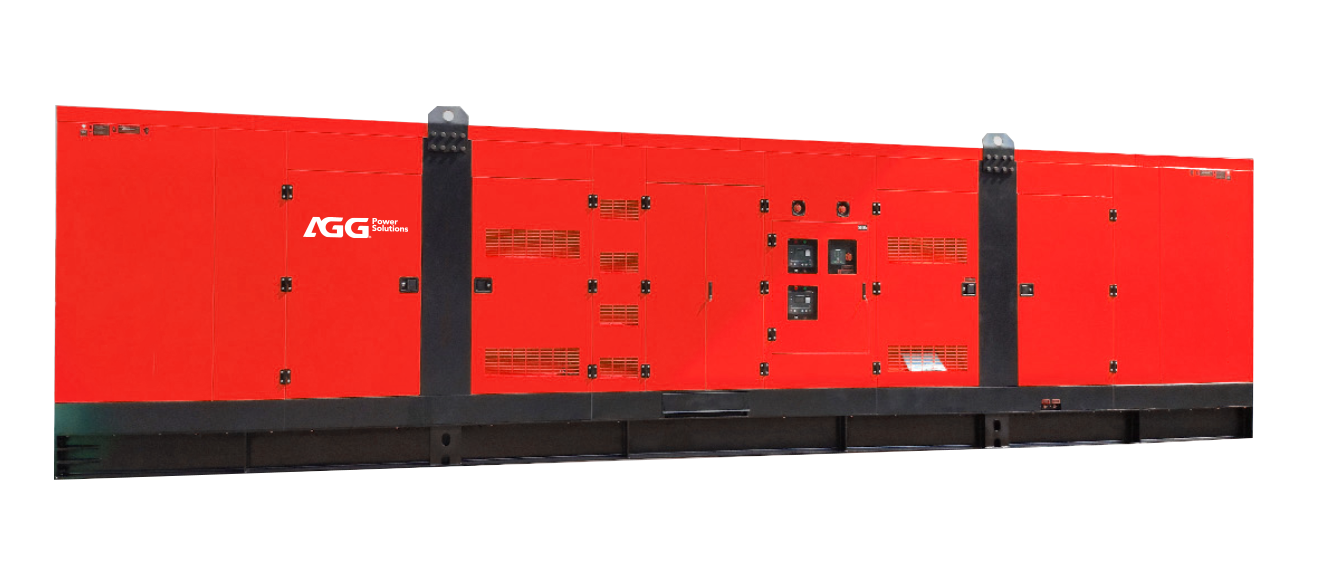

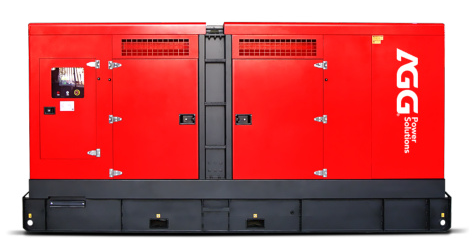

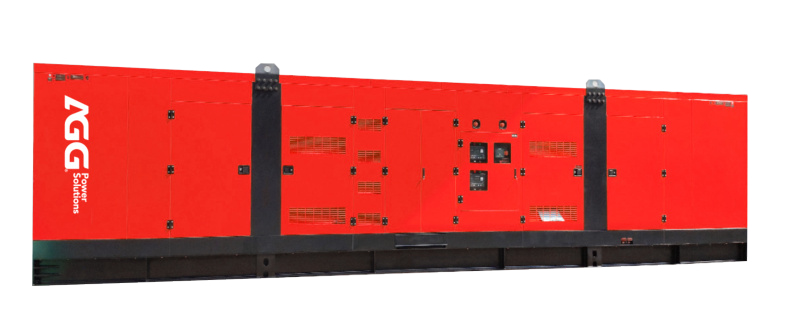

Enclosure: Customized compact soundproof type

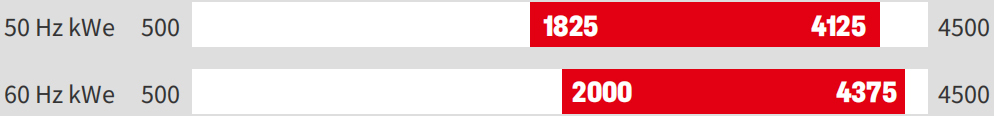

Power Range: 50Hz:1825-4125kVA 60Hz:2000-4375kVA
Sound Level*: 85dB(A)@7m (with load, 50Hz),
Sound Level*: 88 B(A)@7m (with load, 60 Hz)
Dimensions: L11150xW3300xH3500mm (Sizes can be designed for specific projects)
Fuel System: Can be designed for specific projects, with optional large-capacity fuel storage tank

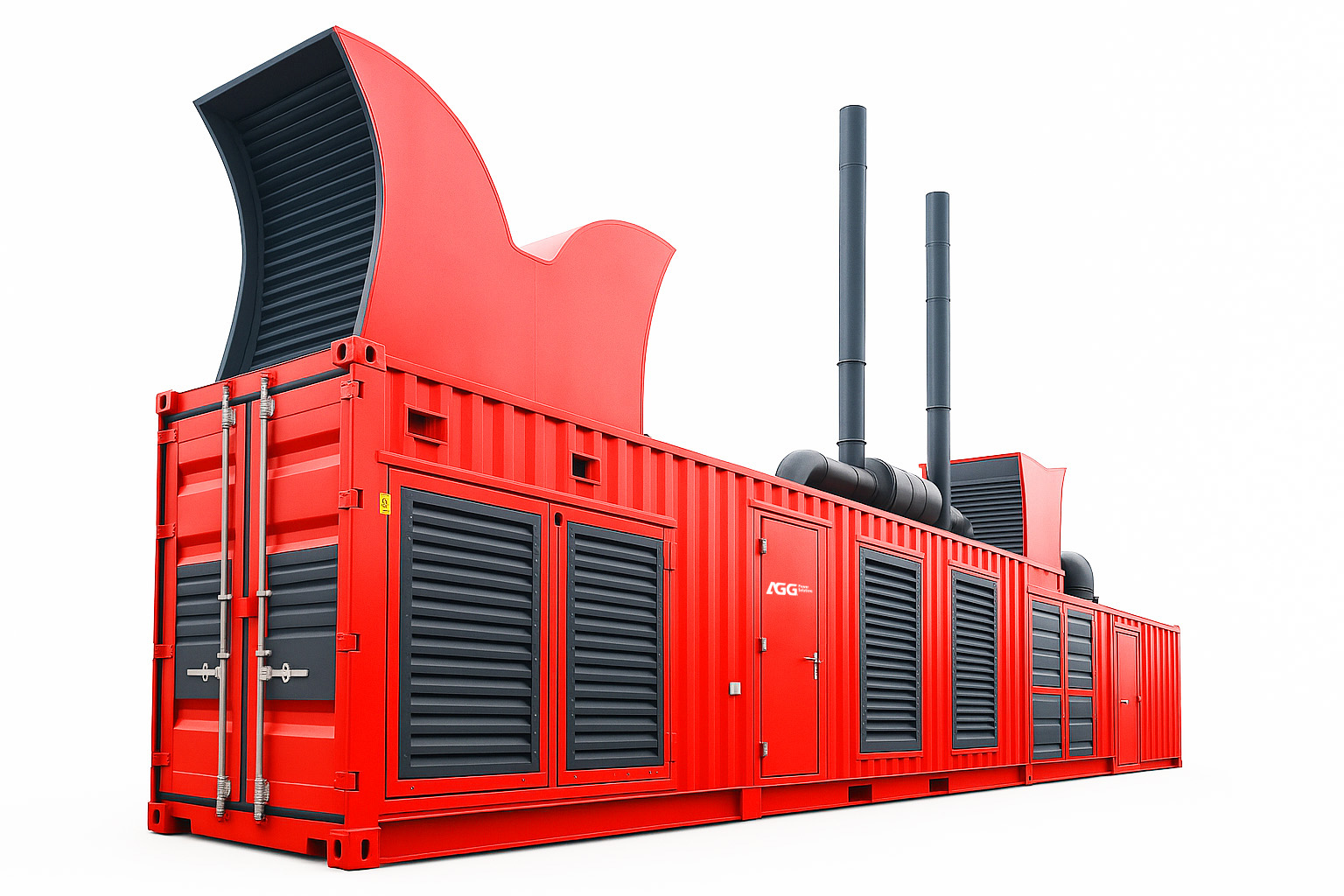

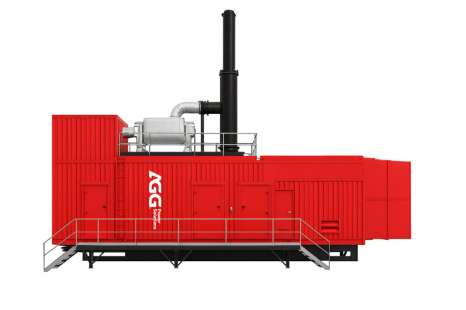

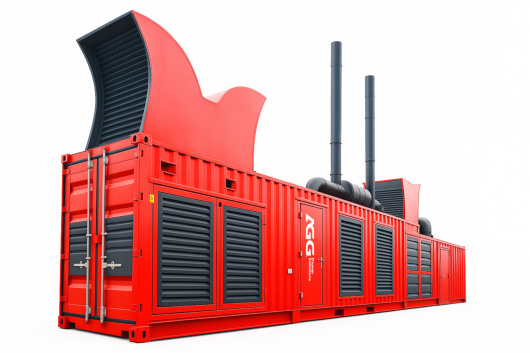

Enclosure: Customized 40HQ or 45HQ containerized type
Power Range: 50Hz:1825-4125kVA 60Hz:2000-4375kVA
Sound Level*: 85 dB(A)@7m (with load,50Hz),
Sound Level*: 88 dB(A)@7m (with load, 60 Hz)
Dimensions: Customized 40HQ or 45HQ (Sizes can be designed for specific projects)
Fuel System: Can be designed for specific projects, with optional large-capacity fuel storage tank
Infrastructure design: Infrastructure design such as generator set base design and fuel tank base design can be carried out according to the project site conditions
